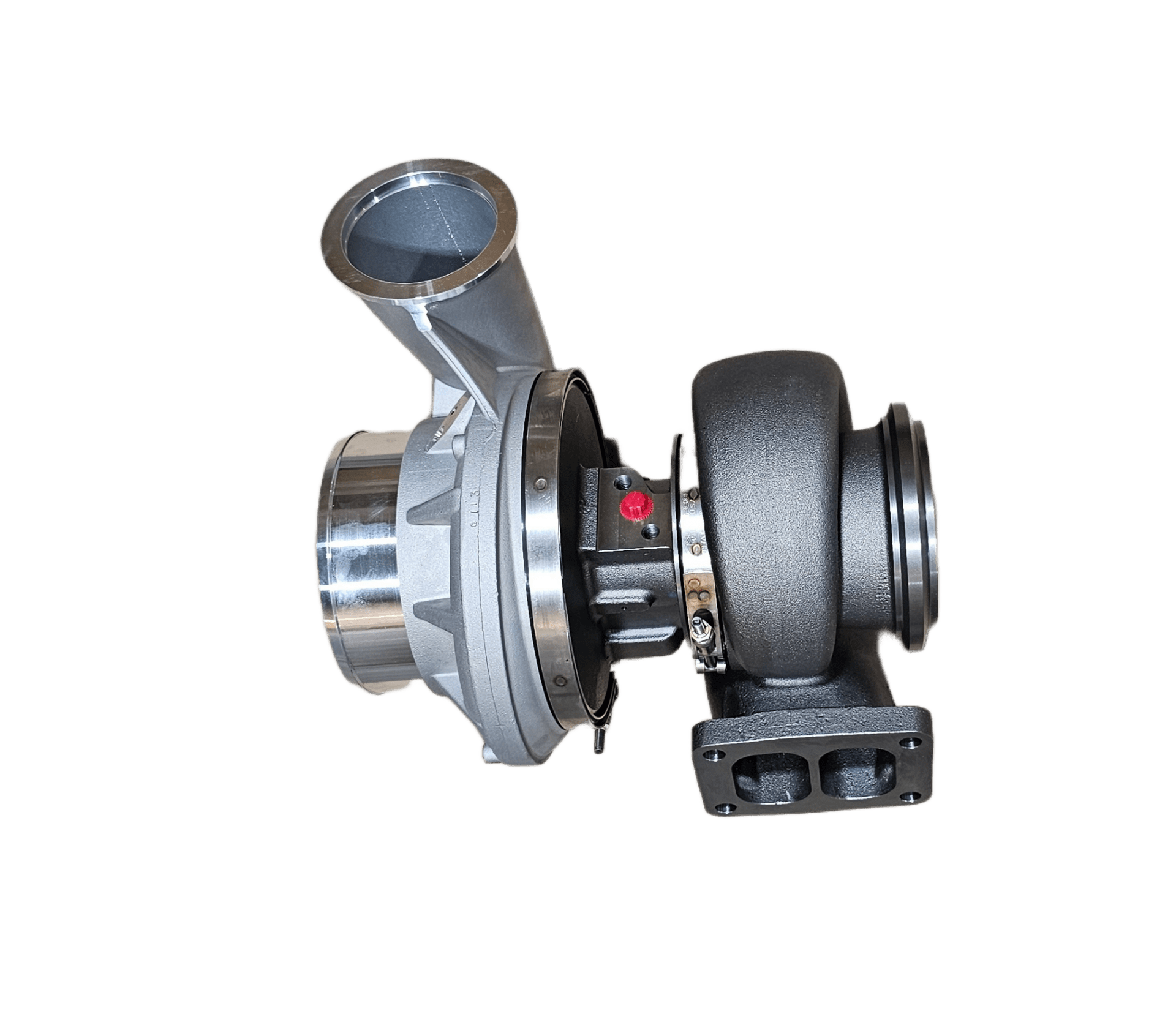

S410SX CAT C15 80MM Turbo T6 1.45AR Task-Pro Series (ATIC8096C-VB-145)
{"remix_data":[],"remix_entry_point":"challenges","source_tags":["local"],"origin":"unknown","total_draw_time":0,"total_draw_actions":0,"layers_used":0,"brushes_used":0,"photos_added":0,"total_editor_actions":{},"tools_used":{"remove_bg":1},"is_sticker":false,"edited_since_last_sticker_save":true,"containsFTESticker":false}

S410SX CAT C15 80MM Turbo T6 1.45AR Task-Pro Series (ATIC8096C-VB-145)

Regular Price $2,295.00

ATIC8096C-VB-145 , , , , , , ,

EXHAUST HOUSING *

5″ Exhaust Downpipe Flange & Clamp *

5" Stainless Turbo Downpipe *

90* Elbow Kit W/ Clamp & O-ring *

S400 V-band Compressor Outlet Clamp *

Product price: $2,295.00
Total options:
Order total:

S410SX CAT C15 80MM Turbo T6 1.45AR Task-Pro Series (ATIC8096C-VB-145)

Airtec Innovations Task-Pro turbos are designed assembled and balanced at our ATI turbo shop in Southeast Iowa. This turbo is designed to be a direct replacement 80mm for the C15 Cat 3406B-E 6NZ Models. The estimated operating horsepower range is from 650-850HP, although depending on how your truck is modified these results may vary. The ATI turbos have the heavy Duty 360 thrust bearings, H80 Larger diameter turbine shaft and have the compressor inducer machined with a radius for optimum air flow, ATI Task-Pro Series turbos are designed to flow Air to obtain the good fuel economy as well as drivability & horsepower.

Specifications:
*80mm compressor wheel
*96MM turbine wheel

*H80 BIG BORE SHAFT And Bearings
*HD 360 degree thrust bearing
*Twin hydrodynamic journal bearings
*T6 twin scroll 1.32 A/R non-waste gated turbine housing
*Supporting HP range from 650-850HP

AIRTEC IS THE ORIGINAL DESIGNER OF THE LARGE SHAFT CAT TURBOS, OUR DESIGN IS SUPERIOR TO ANY OTHER TURBOS ON THE MARKET FOR THIS APPLICATION

Weight 60 lbs
Dimensions 16 × 11 × 15 in
