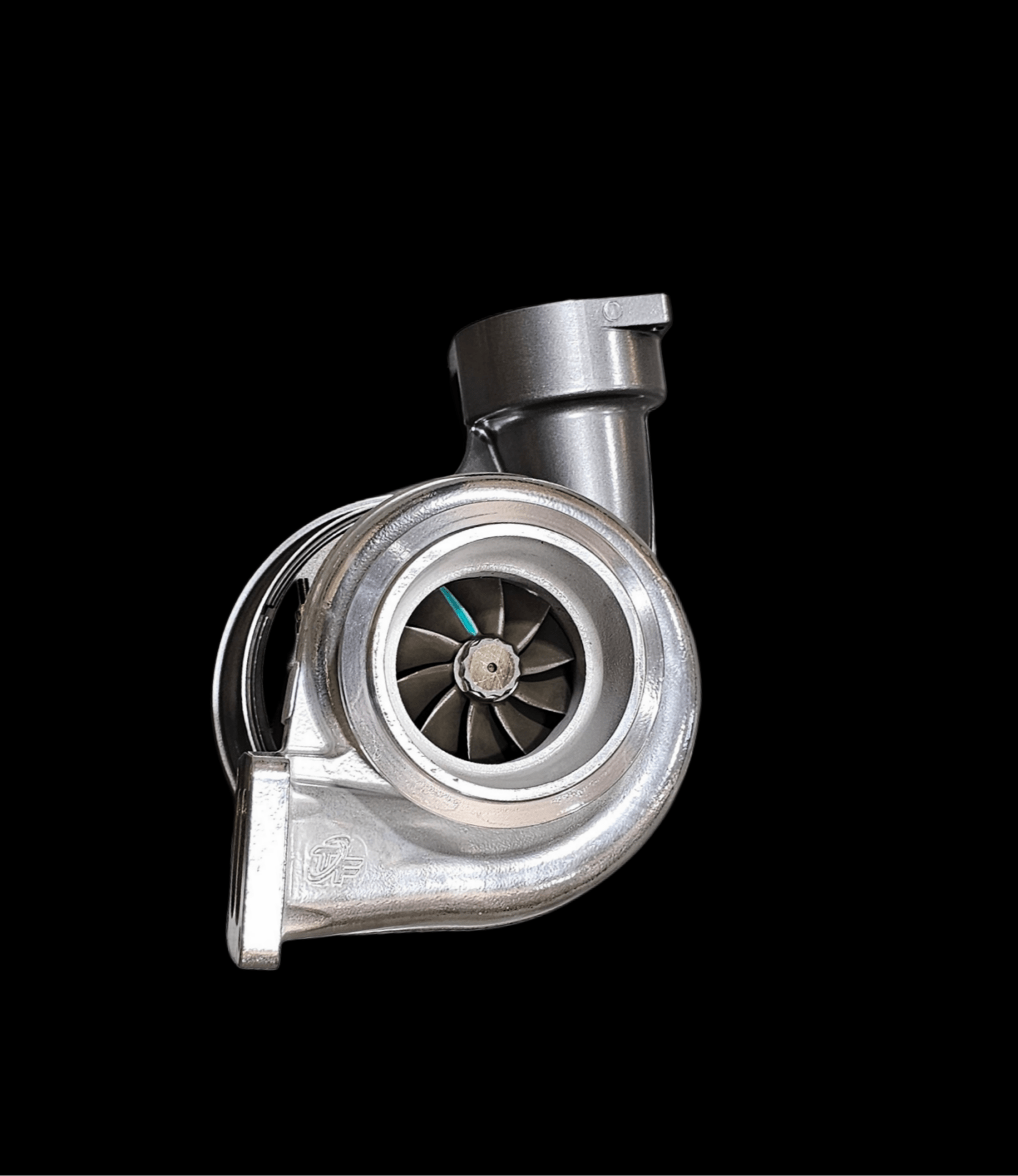

S410SX CAT C15 Turbo 75MM Titanium Series (ATIC7596T-OEM-132)
Regular Price $2,795.00
S410SX TITANIUM 75MM Turbocharger for C15 & 3406B-E Model CAT S430SX (ATIC7596T-OEM-132)
Air-tec Innovation’s Titanium Series turbos are designed to be a direct replacement 75mm Turbo for the Cat C15 3406B-E models. The estimated operating horsepower range is from 425-600 HP, although depending on how your truck is modified these results may vary. Our CAT turbos have Our Custom H80 BIG BORE SHAFT AND BEARINGS With our exclusive Custom 360 thrust bearing and have the compressor inducer machined with a radius for optimum air flow. Our ATI Titanium wheels are our exclusive design. The benefits of the Titanium compressor wheel are Superior Strength and Longevity compared to a Billet wheel to obtain the best horsepower & drivability. Our Titanium Series turbos have a powder coated compressor cover and chrome ceramic coated exhaust housing.
- Specifications:
*75mm Titanium Compressor wheel
*96MM turbine wheel - *H80 BIG BORE SHAFT AND BEARINGS
*HD 360 degree thrust bearing
*Twin hydrodynamic journal bearings - *T6 twin scroll 1.32 A/R non-waste gated turbine housing
- *Powder coated compressor cover
- *Chrome ceramic coated exhaust housing
*Supporting HP range from 425-600HP
PATENT TITANIUM WHEEL DESIGN
AIRTEC IS THE ORIGINAL DESIGNER OF THE LARGE SHAFT CAT TURBOS, OUR DESIGN IS SUPERIOR TO ANY OTHER TURBOS ON THE MARKET FOR THIS APPLICATION
Weight | 60 lbs |
---|---|
Dimensions | 15 × 11 × 16 in |
